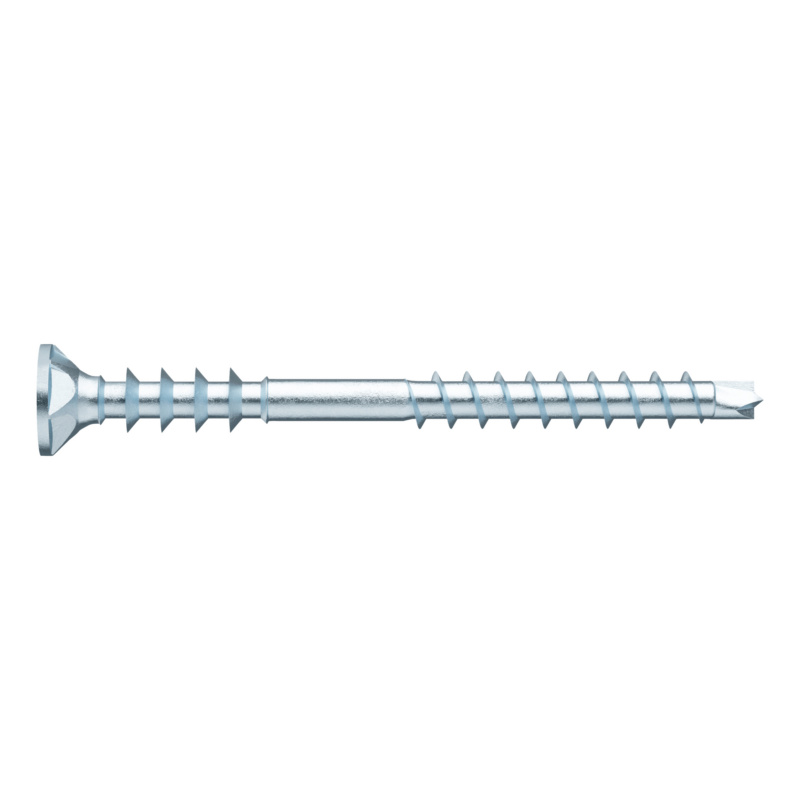

JAMO® Plus 4 stilliskrúfa 6x100 RW40

Vörunúmer: 0234 466 100

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Hardened steel, Hardened steel
Nominal diameter (d)	6 mm
Head type	Countersunk milling pocket head
Head diameter (dh)	12 mm
Head height (k)	4.4 mm
Head details	Milling pockets
Internal drive	RW40
Nominal diameter 2	6.7 mm
Thread type	Wood screw thread
Thread design	Partial thread with underhead thread for adjusting
Thread form	Single start thread
Thread length (lg)	55 mm
Screw-thread length with drill tip (b)	60 mm
Core diameter	3.9 mm
Core diameter of head thread	4 mm
Shape of tip	Centring drilling tip
Surface	Zinc plated
Suitable for use in the following materials	Wood, Derived timber product, Board ply wood (BSP), Softwood, OSB, Chipboard
Area of application	Spacing assemblyAdjustingSubstructure
Max. screw-in angle	90 Degree
Min. screw-in angle	0 Degree
Approval	ETA-11/0190
RoHS-compliant	Yes
Length (l)	100 mm
