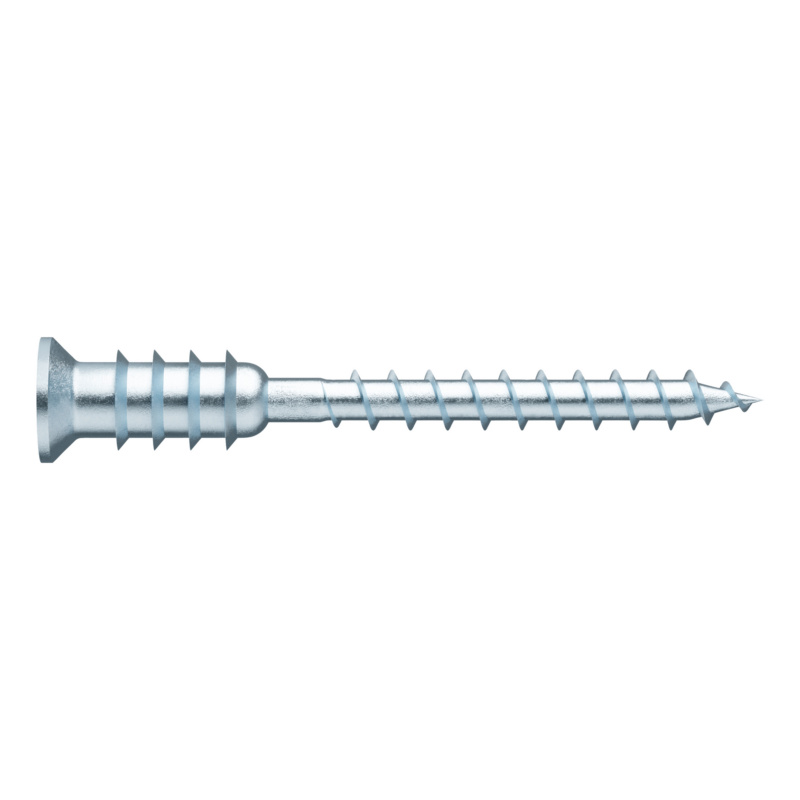

JAMO 4 CS stilliskrúfa 6 x 80 RW40

Vörunúmer: 0234 564 80

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Length (l)	80 mm
Nominal diameter (d)	6 mm
Material	Hardened steel
Surface	Zinc plated
Internal drive	RW40
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Wood screw thread
Thread format	Coarse thread
Thread design	Partial thread with underhead thread for adjusting
Area of application	Spacing assemblyAdjustingSubstructure
Shape of tip	Tip
Core diameter	3.9 mm
Max. screw-in angle	90 Degree
Min. screw-in angle	0 Degree
Suitable for use in the following materials	Dowel
Approval	ETA-11/0190
Thread length	53 mm
Nominal diameter 2	9.9 mm
Core diameter of head thread	7.4 mm
Head height	3.5 mm
Head diameter	12.3 mm
