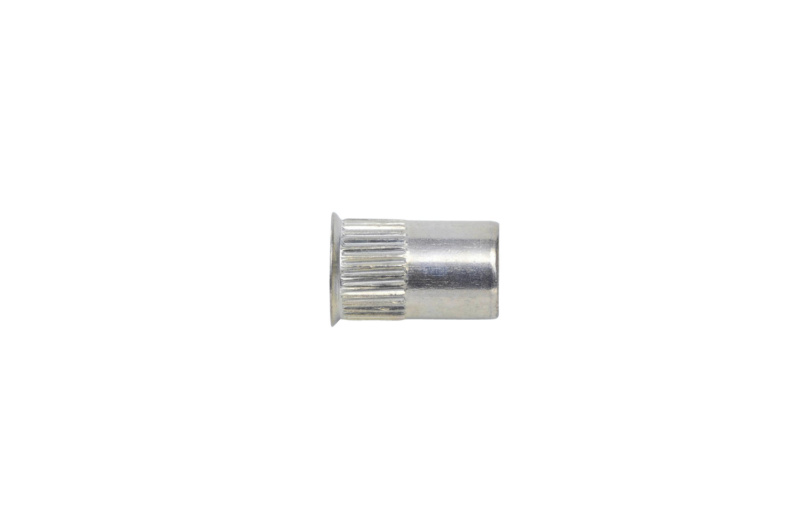

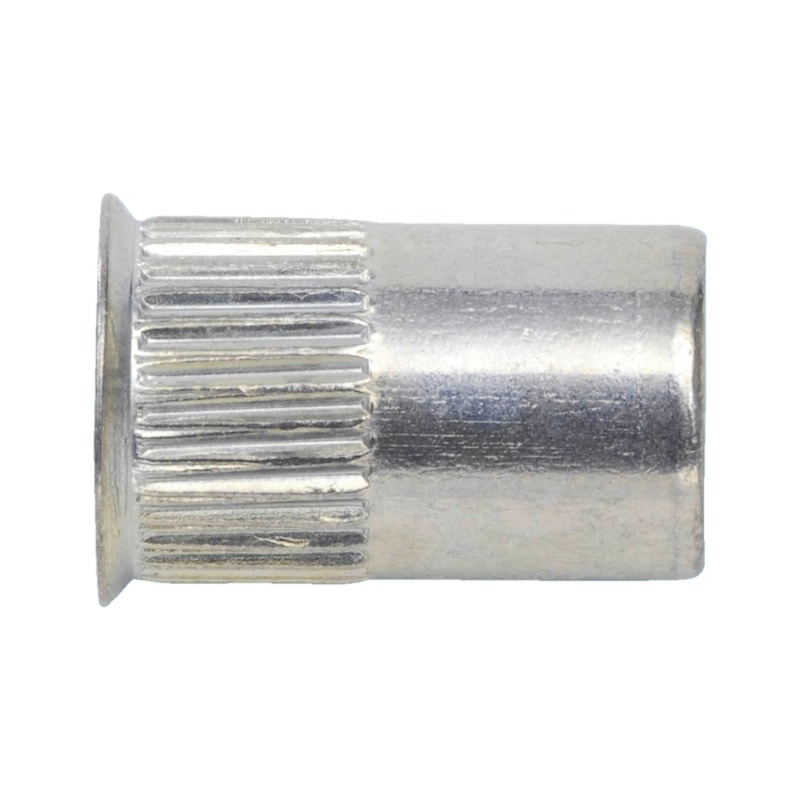

Hnoðró M6 rifluð, grönn

Vörunúmer: 0917 760

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Length (l1)	13 mm
Head height (k1)	0.50 mm
Head type	Countersunk head
Thread type x nominal diameter (D)	M6
Outer diameter (d2)	7.9 mm
Drill hole diameter	8 mm
Shear-fracture load	4400 N
Tensile fracture load	10000 N
Head diameter (d1)	9 mm
Min./max. grip range (s1)	0,5-3,0 mm
Max. tightening torque	10 Nm
Shank detail	With knurled shank

Skrifaðu þína eigin umsögn

Titill umsagnar: *

Texti umsagnar: *

Einkunn:

Nafnið þitt *

Netfangið þitt *

Fyrirspurn *

Vinsælar vörur Skoða vörur

Tæknilegar upplýsingar

Material	Steel
Surface	Galvanised
Length (l1)	13 mm
Head height (k1)	0.50 mm
Head type	Countersunk head
Thread type x nominal diameter (D)	M6
Outer diameter (d2)	7.9 mm
Drill hole diameter	8 mm
Shear-fracture load	4400 N
Tensile fracture load	10000 N
Head diameter (d1)	9 mm
Min./max. grip range (s1)	0,5-3,0 mm
Max. tightening torque	10 Nm
Shank detail	With knurled shank
