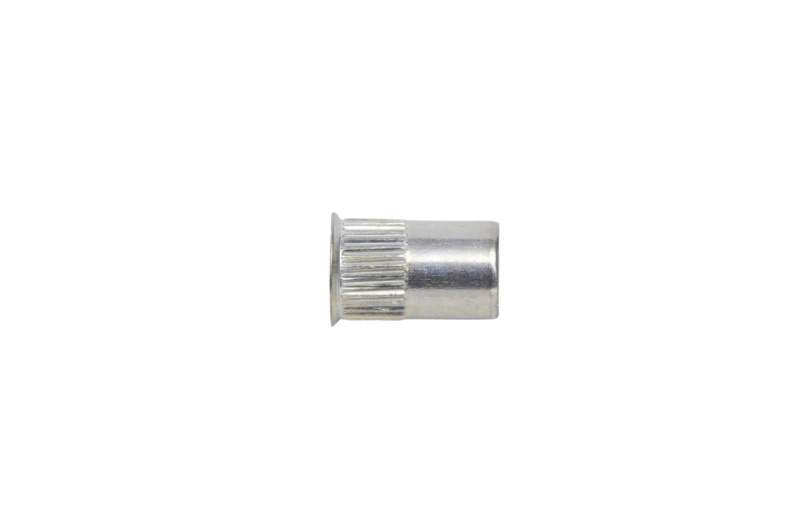

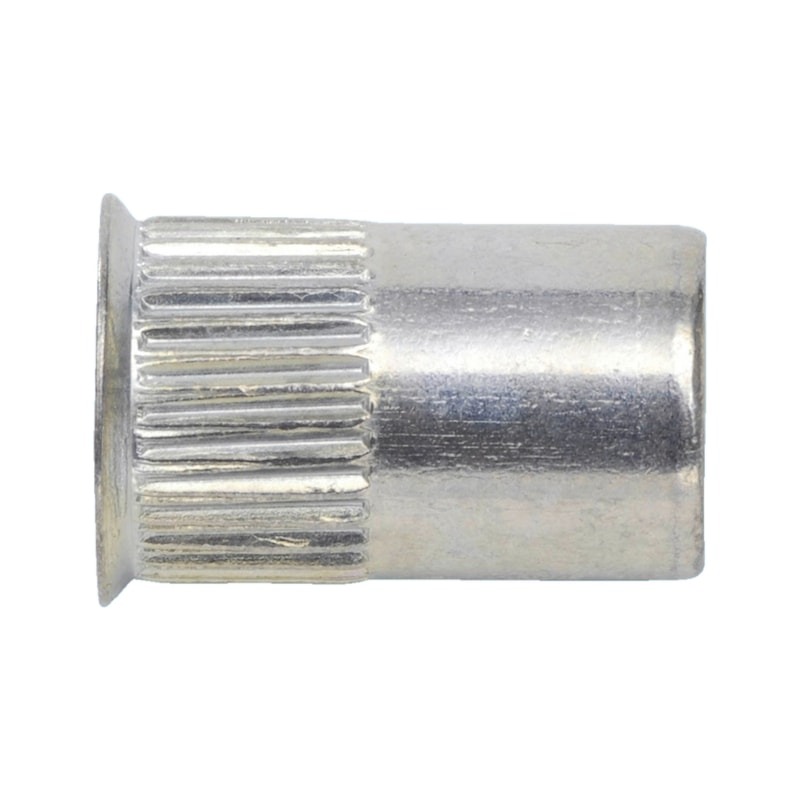

Hnoðró M4 rifluð, grönn

Vörunúmer: 0917 740

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Length (l1)	10 mm
Head height (k1)	0.45 mm
Head type	Countersunk head
Thread type x nominal diameter (D)	M4
Outer diameter (d2)	6.9 mm
Drill hole diameter	7 mm
Shear-fracture load	2200 N
Tensile fracture load	6800 N
Head diameter (d1)	8 mm
Min./max. grip range (s1)	0,5-3,0 mm
Max. tightening torque	3 Nm
Shank detail	With knurled shank
