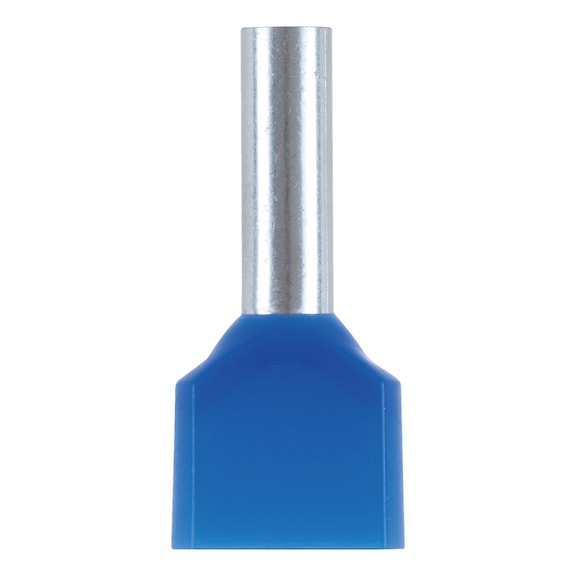

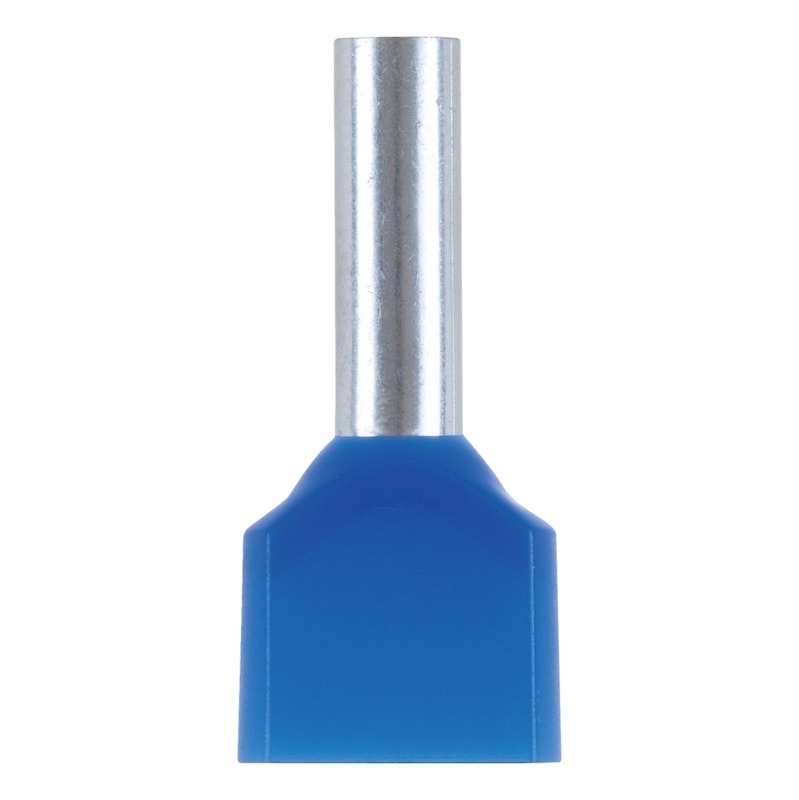

Endahulsa f.2 víra 2,5x10,0 blá

Vörunúmer: 0557 405

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Number of wires	2 PCS
Wire cross section	2.5 mm²
Colour	Blue
Length (l1)	18.5 mm
Sleeve length (l2)	10 mm
Sleeve inside diameter (d1)	2.8 mm
Sleeve-wall thickness (s1)	0.20 mm
Insertion-funnel height	4.2 mm
Insertion-funnel width	7.8 mm
Wall thickness of insertion funnel (s2)	0.30 mm
Max. temperature resistance	105 °C
Material	Copper
Surface	Tin-plated
Halogen-free	Yes
