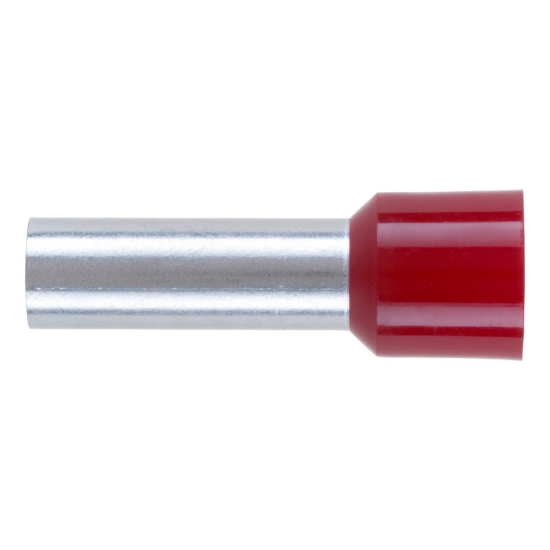

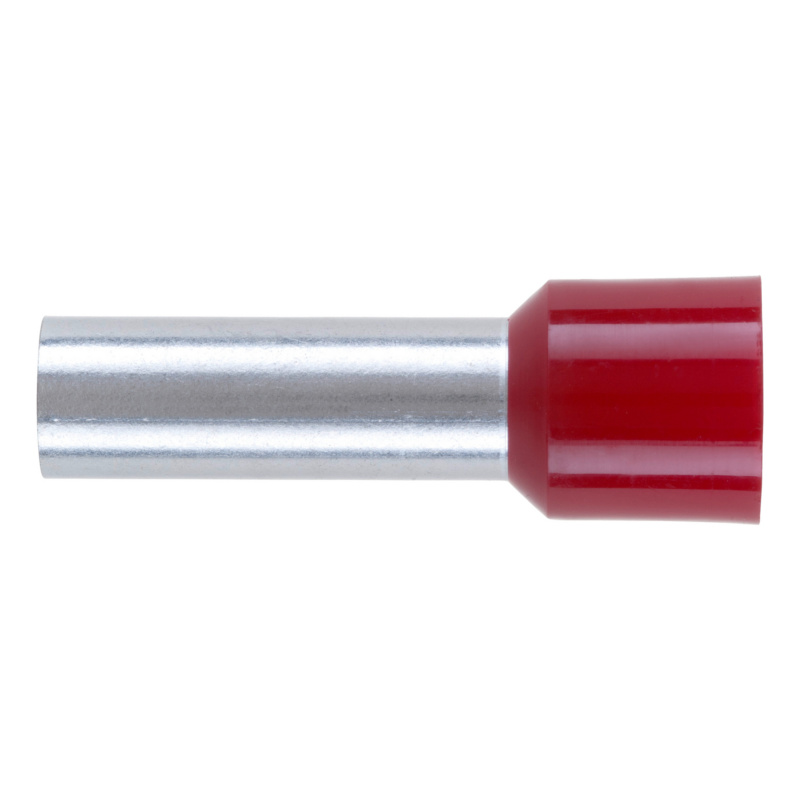

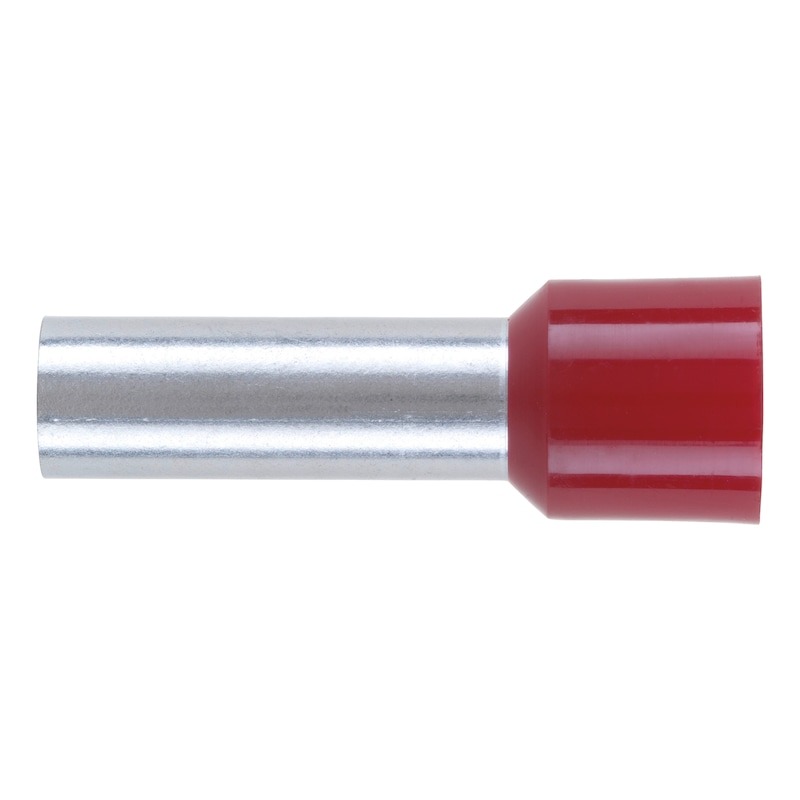

Endahulsa einangruð 35,0x25,0 Rauð

Vörunúmer: 0557 300 352

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Wire cross section	35.0 mm²
Colour	Red
Length (l1)	39 mm
Sleeve length (l2)	25 mm
Sleeve inside diameter (d1)	8.3 mm
Sleeve-wall thickness (s1)	0.20 mm
Internal diameter of insertion funnel (d2)	12.7 mm
Wall thickness of insertion funnel (s2)	0.40 mm
Max. temperature resistance	105 °C
Material	Electrolytic copper
Surface	Tin-plated
Halogen-free	Yes
