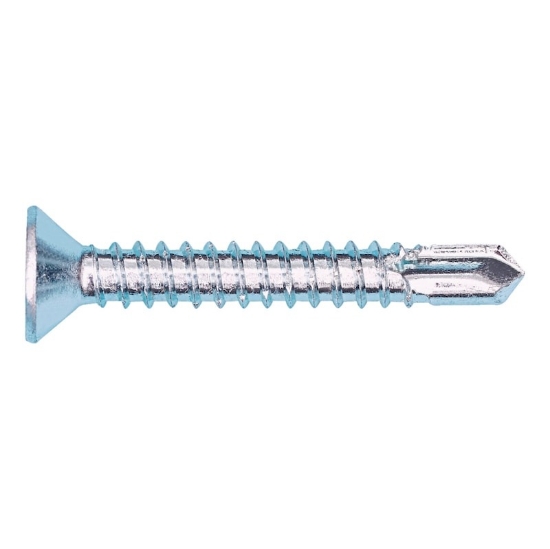

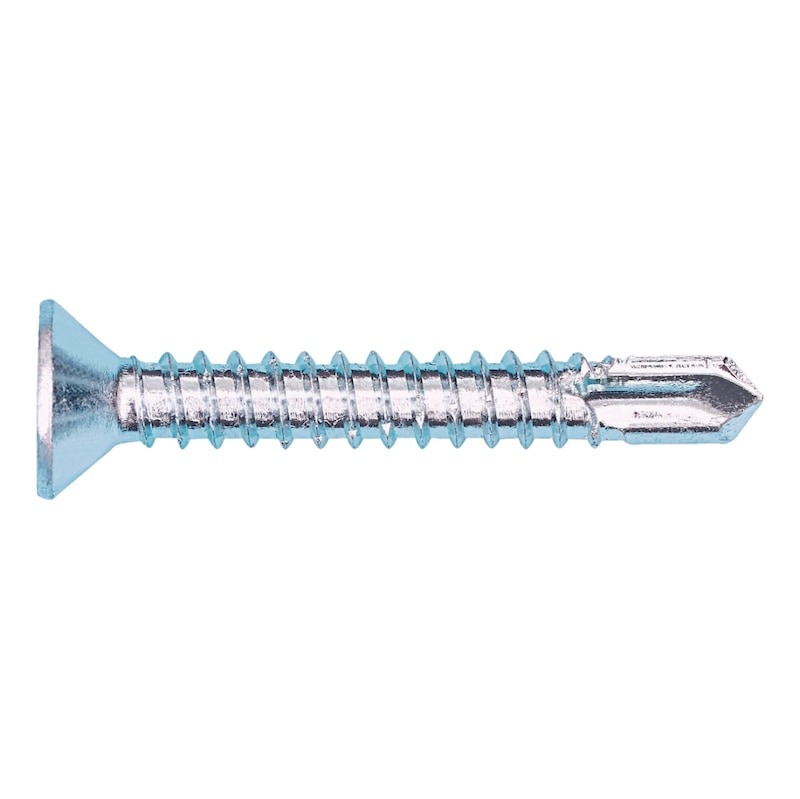

Borskrúfa PIAS® undirs. 3,5x13 AW10

Vörunúmer: 0205 735 13

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Min. recommended substructure thickness	1.5 mm
Material	Steel
Surface	Zinc plated
Nominal diameter (d1)	3.5 mm
Length (l1)	13 mm
Head diameter (dk)	6.8 mm
Head height (k1)	2.5 mm
Internal drive	AW10
Head type	Countersunk head 80 degree
RoHS-compliant	Yes
Thread type	Self-tapping screw thread
Other standard	Company standard
Drill tip length (lp)	3 mm
Max. material thickness to be drilled through (metal)	2.5 mm
Min./max. recommended installation speed (idling)	1700-2500 U/min(rpm)
