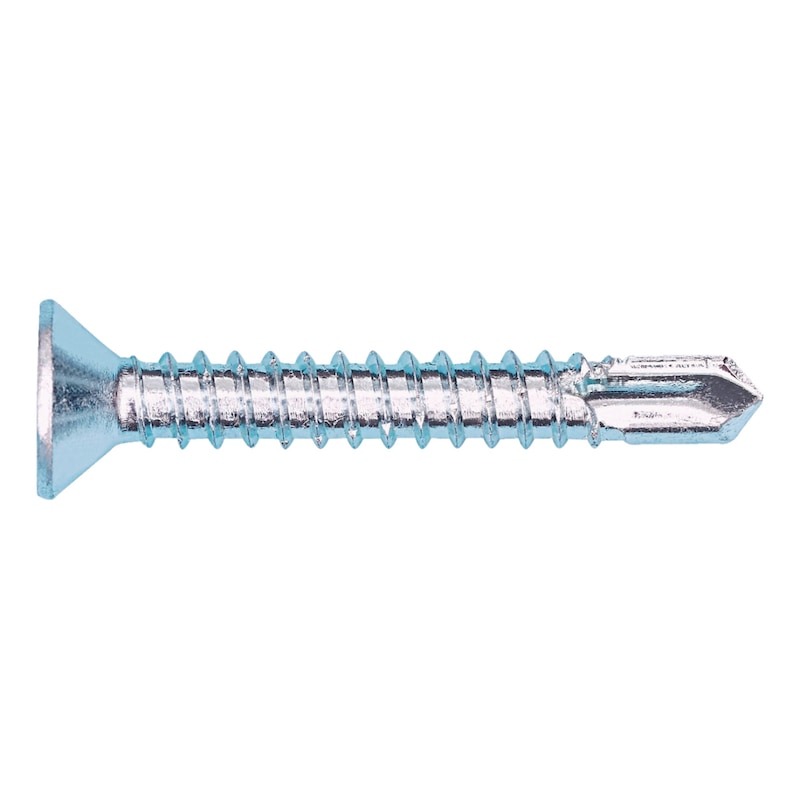

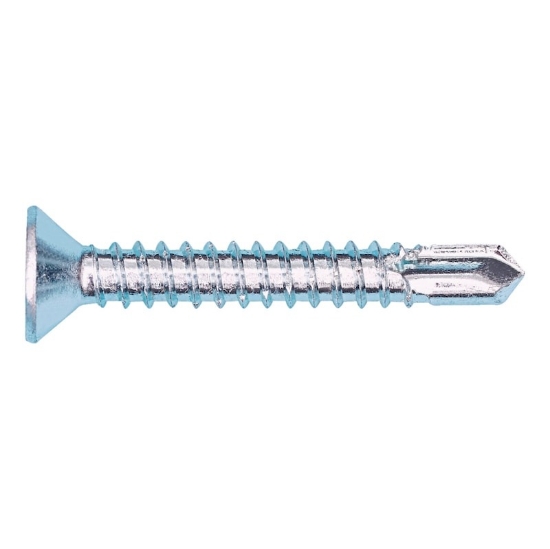

Borskrúfa PIAS® undirs. 2,9x13 AW10

Vörunúmer: 0205 729 13

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Min. recommended substructure thickness	1 mm
Material	Steel
Surface	Zinc plated
Nominal diameter (d1)	2.9 mm
Length (l1)	13 mm
Head diameter (dk)	5.5 mm
Head height (k1)	2 mm
Internal drive	AW10
Head type	Countersunk head 80 degree
RoHS-compliant	Yes
Thread type	Self-tapping screw thread
Other standard	Company standard
Drill tip length (lp)	2.5 mm
Max. material thickness to be drilled through (metal)	2 mm
Min./max. recommended installation speed (idling)	1700-2500 U/min(rpm)
