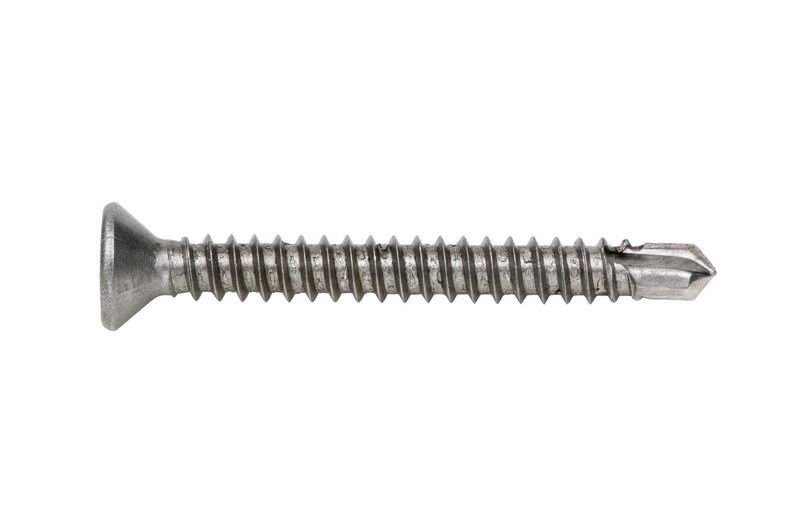

Borskrúfa PIAS® undirs. A2 4,2x38 AW20

Vörunúmer: 0205 842 38

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Stainless steel A2
Surface	Bare
Nominal diameter (d1)	4.2 mm
Length (l1)	38 mm
Head diameter (dk)	8.1 mm
Head height (k1)	3.1 mm
Internal drive	AW20
Head type	Countersunk head
RoHS-compliant	Yes
Thread type	Self-tapping screw thread
Other standard	Company standard
Drill tip length (lp)	3.7 mm
For min. substructure thickness	1.5 mm
Max. material thickness to be drilled through (metal)	3.5 mm
Min./max. recommended installation speed (idling)	1700-2500 U/min(rpm)
