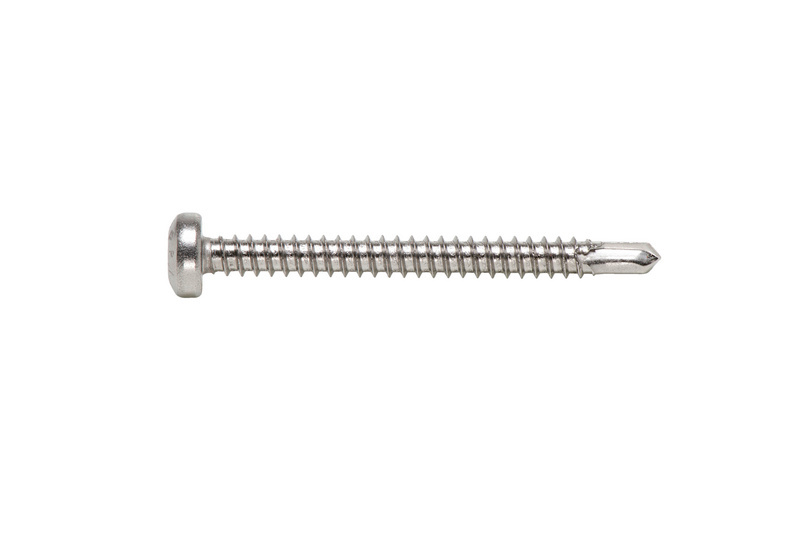

Borskrúfa PIAS® A2 panh 4,2x13 AW20

Vörunúmer: 0206 142 13

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Stainless steel A2
Surface	Bare
Nominal diameter (d1)	4.2 mm
Length (l1)	13 mm
Head diameter (dk)	8 mm
Head height (k1)	3.45 mm
Internal drive	AW20
Head type	Flat head
RoHS-compliant	Yes
Thread type	Self-tapping screw thread
Other standard	Company standard
Drill tip length (lp)	3.7 mm
For min. substructure thickness	1.5 mm
Max. material thickness to be drilled through (metal)	3.5 mm
Min./max. recommended installation speed (idling)	1200-1800 U/min(rpm)
Max. attachment thickness	6 mm
