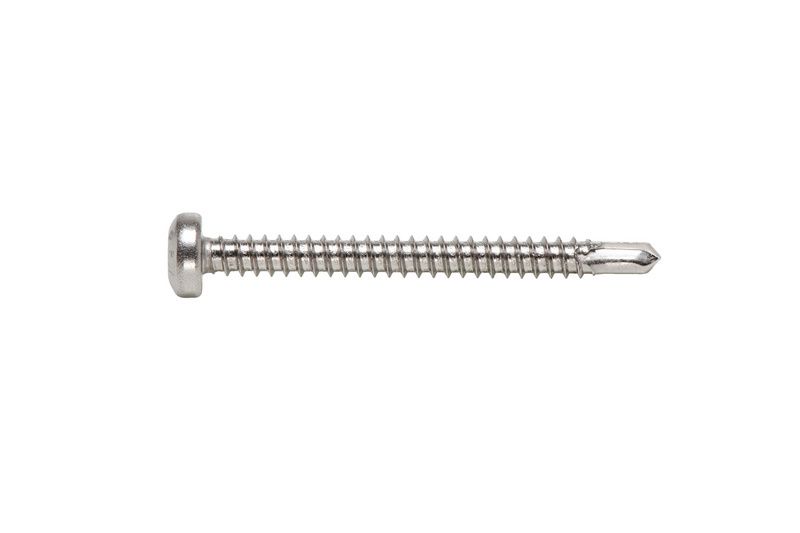

Borskrúfa PIAS® A2 panh 3,9x16 AW20

Vörunúmer: 0206 139 16

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Stainless steel A2
Surface	Bare
Nominal diameter (d1)	3.9 mm
Length (l1)	16 mm
Head diameter (dk)	7.5 mm
Head height (k1)	3.1 mm
Internal drive	AW20
Head type	Flat head
RoHS-compliant	Yes
Thread type	Self-tapping screw thread
Other standard	Company standard
Drill tip length (lp)	3.1 mm
For min. substructure thickness	1.5 mm
Max. material thickness to be drilled through (metal)	3 mm
Min./max. recommended installation speed (idling)	1700-2500 U/min(rpm)
Max. attachment thickness	9 mm
