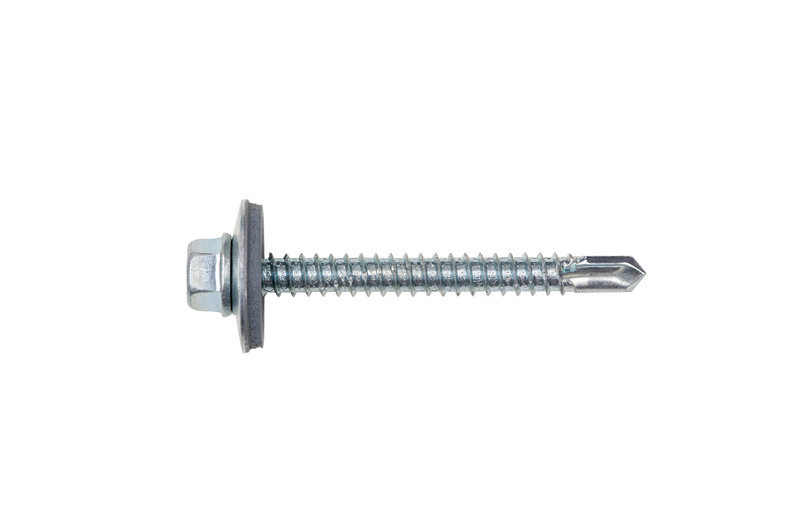

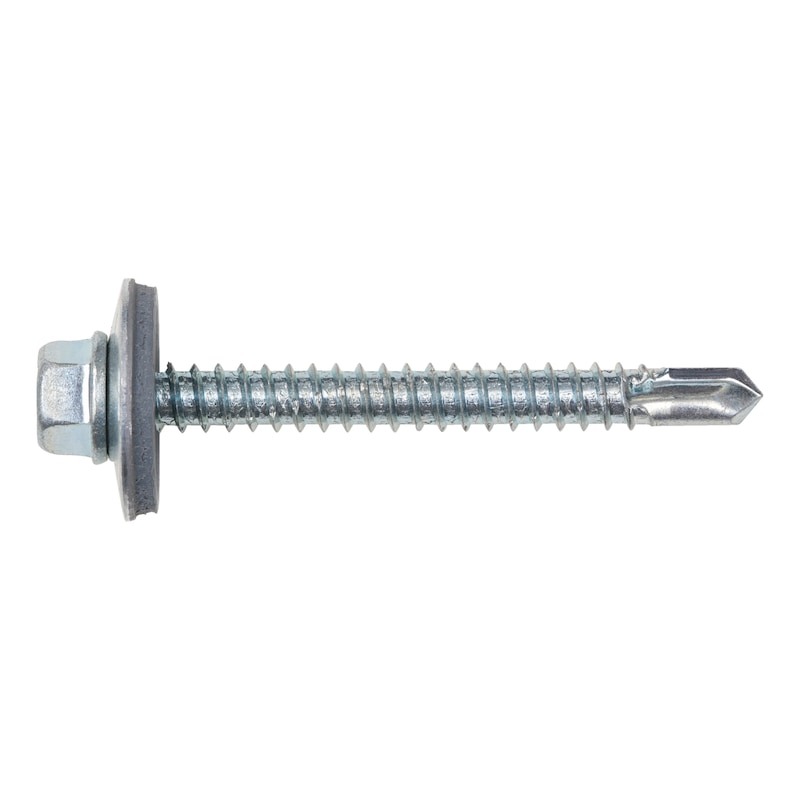

Borskrúfa m. þéttingu 6,3x30

Vörunúmer: 0214 763 309

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Nominal diameter (d1)	6.3 mm
Length (l1)	30 mm
Head height (k1)	6.4 mm
Head type	Hexagon head
RoHS-compliant	Yes
Drive type	Hexagon
External drive (s1)	WS10
Washer thickness (h1)	4.6 mm
Sealing-washer material	Steel
Surface of the sealing washer	Galvanised
Gasket material	Ethylene propylene diene terpolymer rubber
Drill tip length (lp)	6.7 mm
Max. material thickness to be drilled through (metal)	6 mm
Collar/flange	Yes
Outside diameter of the sealing washer (d2)	19 mm
