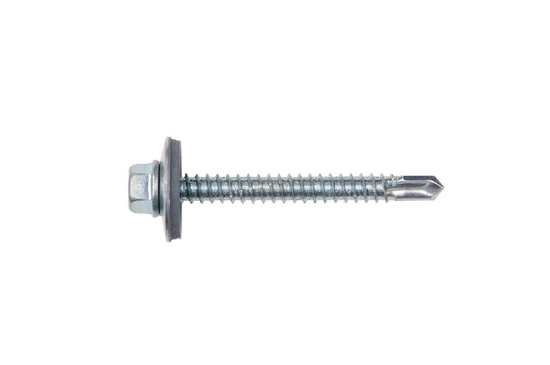

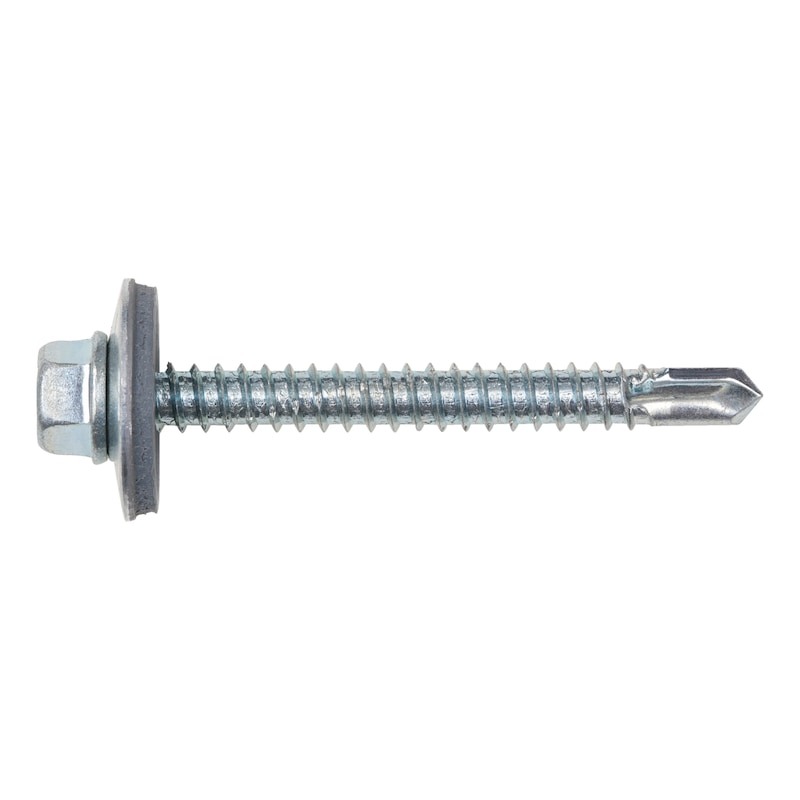

Borskrúfa m. þéttingu 5,5x40

Vörunúmer: 0214 755 409

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Nominal diameter (d1)	5.5 mm
Length (l1)	40 mm
Head height (k1)	5.2 mm
Head type	Hexagon head
RoHS-compliant	Yes
Drive type	Hexagon
External drive (s1)	WS8
Washer thickness (h1)	4 mm
Sealing-washer material	Steel
Surface of the sealing washer	Galvanised
Gasket material	Ethylene propylene diene terpolymer rubber
Drill tip length (lp)	5.7 mm
Max. material thickness to be drilled through (metal)	5.3 mm
Collar/flange	Yes
Outside diameter of the sealing washer (d2)	19 mm
