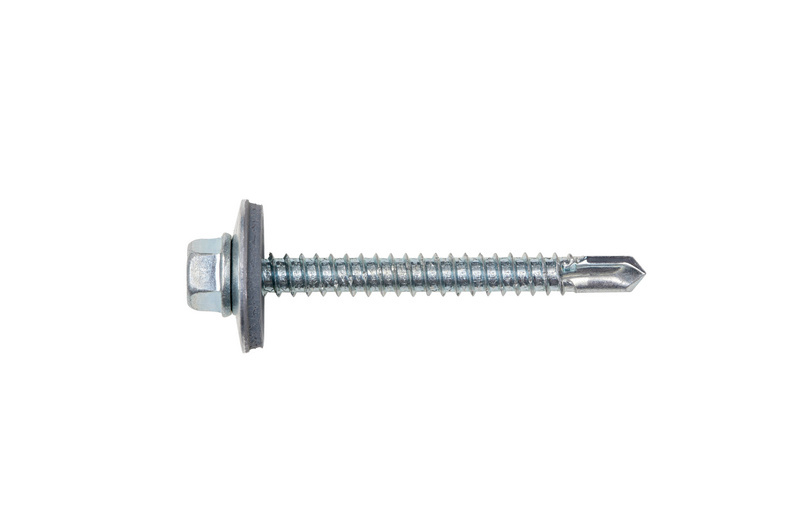

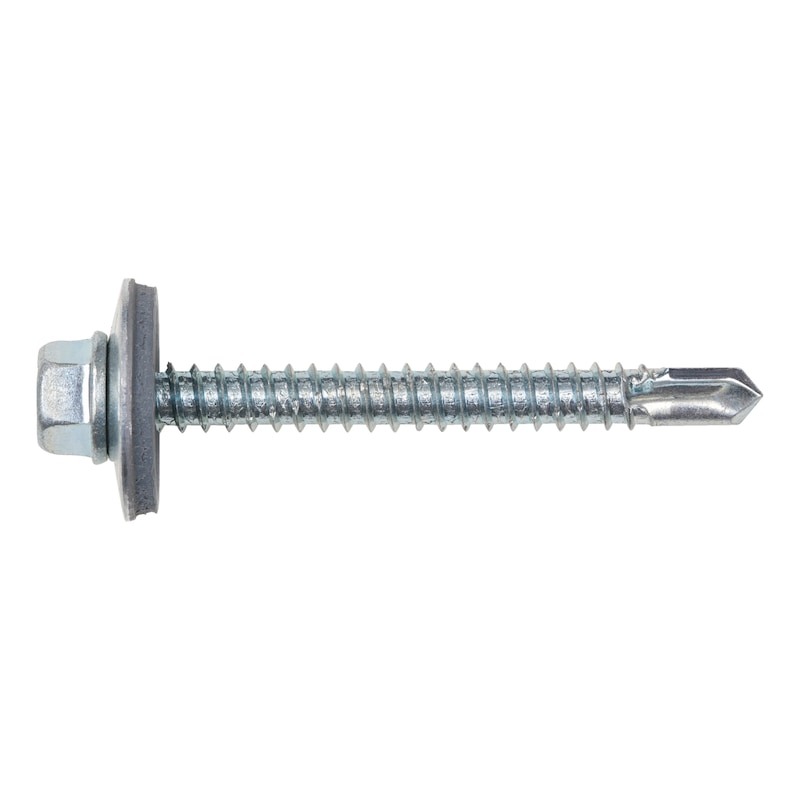

Borskrúfa m. þéttingu 4,8x19

Vörunúmer: 0214 748 199

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Nominal diameter (d1)	4.8 mm
Length (l1)	19 mm
Head height (k1)	5.2 mm
Head type	Hexagon head
RoHS-compliant	Yes
Drive type	Hexagon
External drive (s1)	WS8
Washer thickness (h1)	3.9 mm
Sealing-washer material	Steel
Surface of the sealing washer	Galvanised
Gasket material	Ethylene propylene diene terpolymer rubber
Drill tip length (lp)	5.7 mm
Max. material thickness to be drilled through (metal)	4 mm
Collar/flange	Yes
Outside diameter of the sealing washer (d2)	19 mm

Skrifaðu þína eigin umsögn

Titill umsagnar: *

Texti umsagnar: *

Einkunn:

Nafnið þitt *

Netfangið þitt *

Fyrirspurn *

Vinsælar vörur Skoða vörur

Tæknilegar upplýsingar

Material	Steel
Surface	Galvanised
Nominal diameter (d1)	4.8 mm
Length (l1)	19 mm
Head height (k1)	5.2 mm
Head type	Hexagon head
RoHS-compliant	Yes
Drive type	Hexagon
External drive (s1)	WS8
Washer thickness (h1)	3.9 mm
Sealing-washer material	Steel
Surface of the sealing washer	Galvanised
Gasket material	Ethylene propylene diene terpolymer rubber
Drill tip length (lp)	5.7 mm
Max. material thickness to be drilled through (metal)	4 mm
Collar/flange	Yes
Outside diameter of the sealing washer (d2)	19 mm
