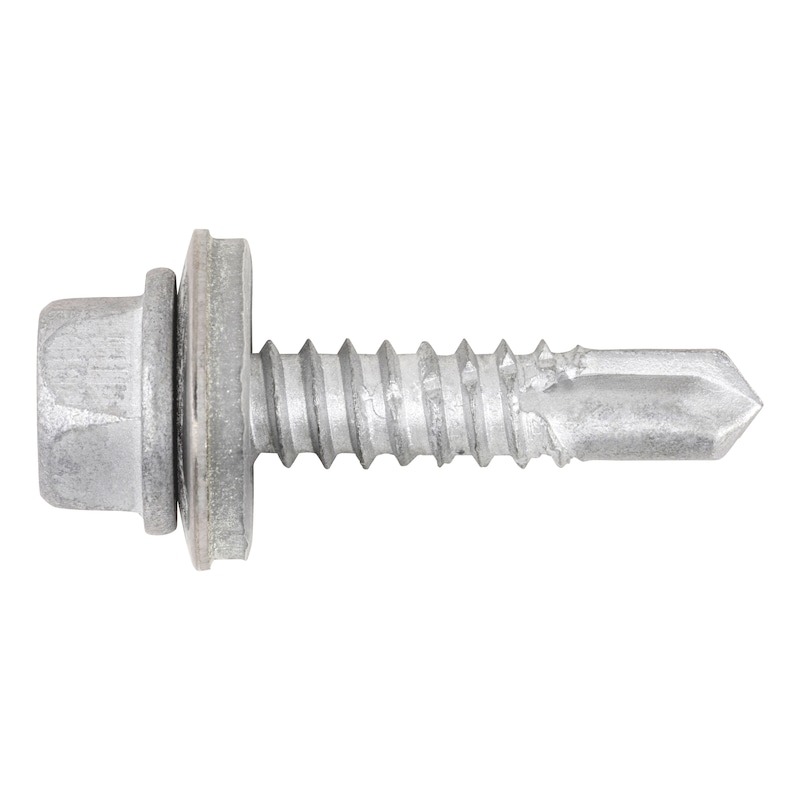

Borskrúfa A2 4,8x25 Zebra m.þéttiskinnu 8mm topp

Vörunúmer: 0214 804 825

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material of sealing washer	Stainless steel A2
Material of gasket	Ethylene propylene diene terpolymer rubber
Thread type	Self-tapping screw thread
Shape of tip	Drilling tip
Underground	Steel, Aluminum
Screw-thread length with drill tip (l1)	22 mm
For max. substructure thickness	3.0 mm
Min./max. attachment thickness	0-7.0 mm
Approval	ETA-10/0184
Min./max. recommended installation speed (idling)	1700-2500 U/min(rpm)
Material	Bimetal
Surface	Flake zinc
Nominal diameter (d1)	4.8 mm
Length (l1)	25 mm
Head height (k1)	4.5 mm
Head type	Hexagon head with collar
RoHS-compliant	Yes
Drive type	Hexagon
External drive (s1)	WS8
Washer thickness (h1)	3 mm
Surface of the sealing washer	Plain
Drill tip length (lp)	5.6 mm
Max. material thickness to be drilled through (metal)	4.4 mm
Outside diameter of the sealing washer (d2)	16 mm
