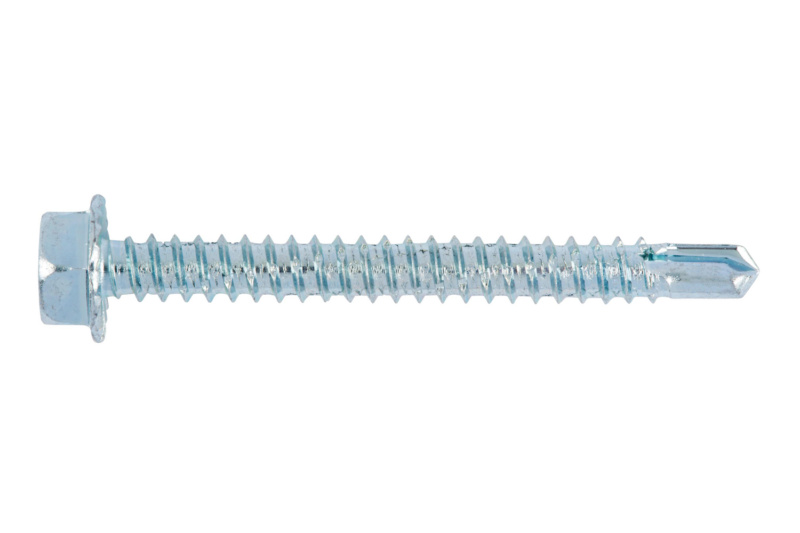

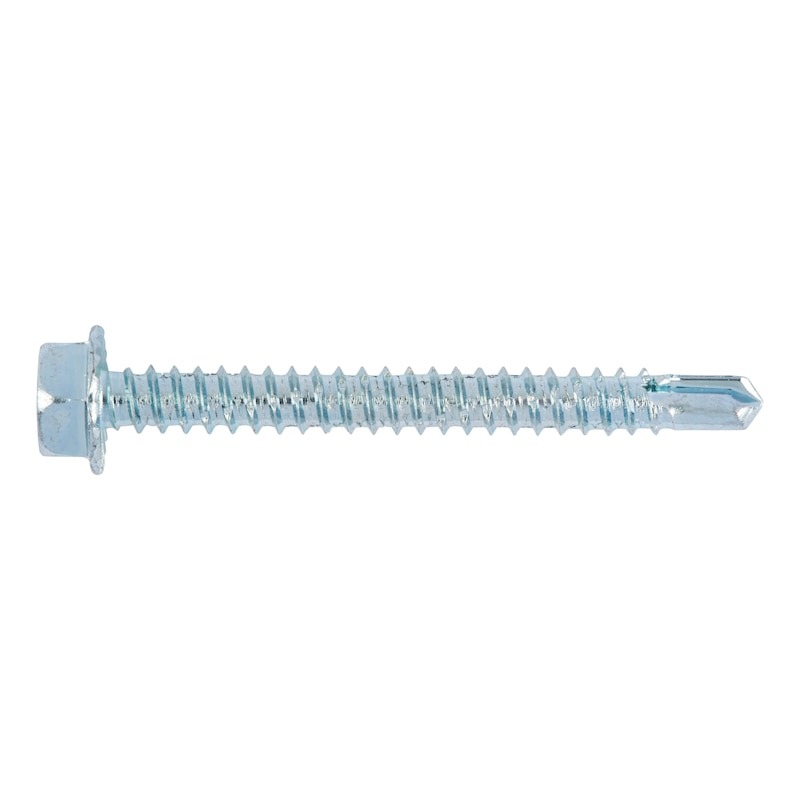

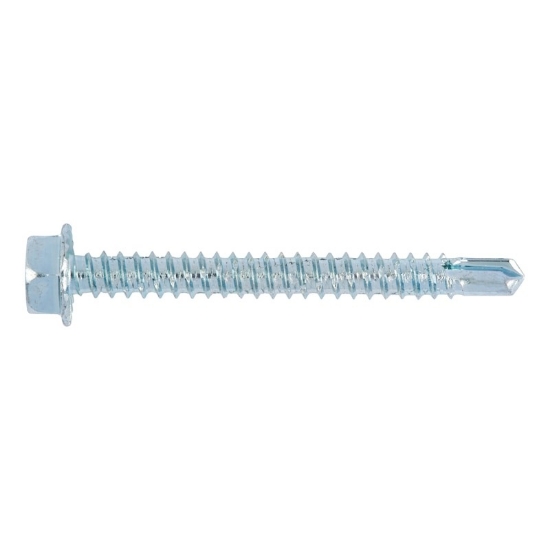

Borskrúfa 6kt 3,5x13 5,5mm topp

Vörunúmer: 0214 35 13

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Nominal diameter (d1)	3.5 mm
Length (l1)	13 mm
Head height (k1)	3.45 mm
Head type	Hexagon head
RoHS-compliant	Yes
Drive type	Hexagon
Thread type	Self-tapping screw thread
External drive (s1)	WS5.5
Other standard	Company standard
Drill tip length (lp)	2.95 mm
For min. substructure thickness	1.5 mm
Max. material thickness to be drilled through (metal)	2.5 mm
Min./max. recommended installation speed (idling)	1700-2500 U/min(rpm)
Flange diameter (dk)	7.67 mm
