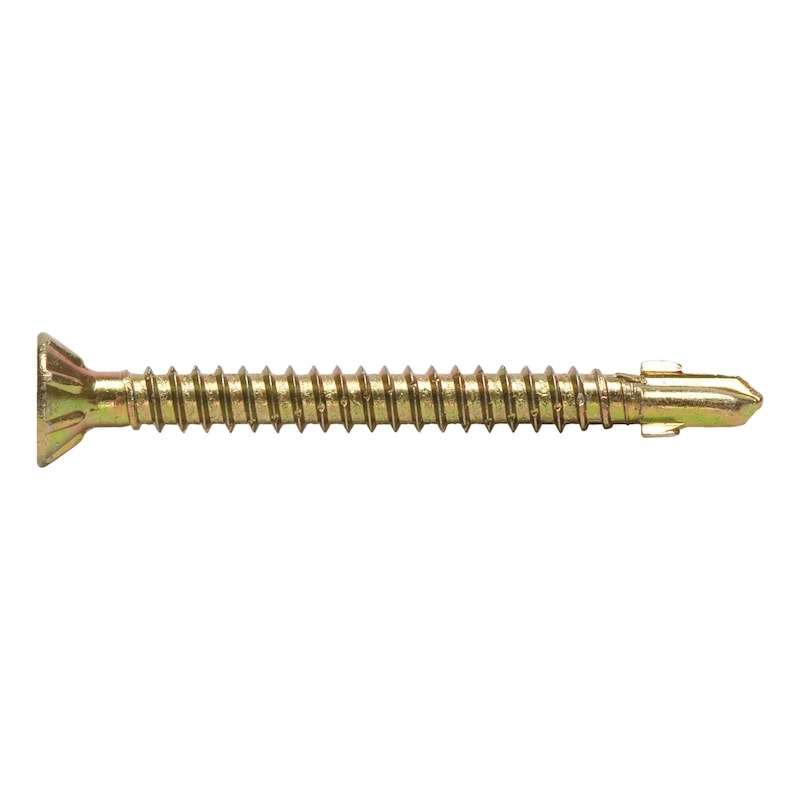

Borskrúfa 5,5x38 AW25 m.væng

Vörunúmer: 0219 115 538

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Yellow galvanised
Nominal diameter (d1)	5.5 mm
Length (l1)	38 mm
Head diameter (dk)	10.8 mm
Head height (k1)	4.4 mm
Internal drive	AW25
Head type	Countersunk milling head
RoHS-compliant	No
Thread type	Self-tapping screw thread
Other standard	Company standard
Approval	No
Drill tip length (lp)	11 mm
For min. substructure thickness	2 mm
Max. material thickness to be drilled through (metal)	5 mm
Min./max. recommended installation speed (idling)	1200-1800 U/min(rpm)
Max. material thickness for wood (lH)	23 mm
