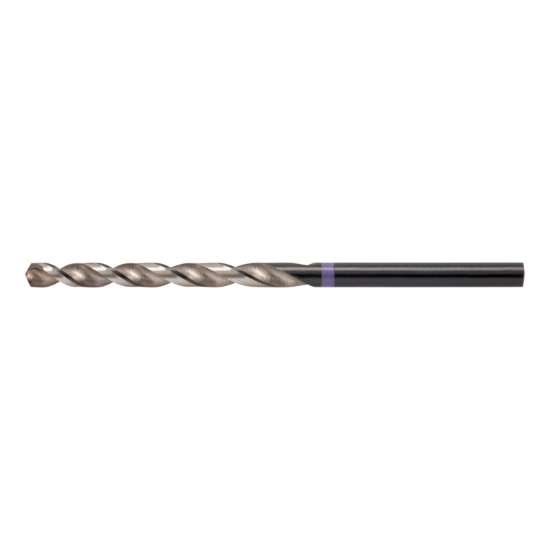

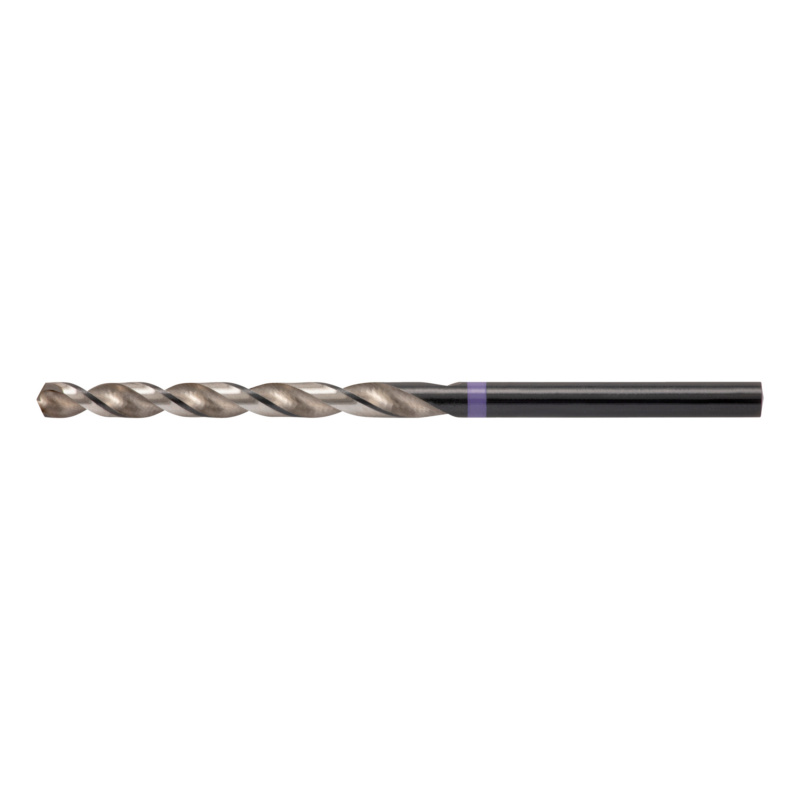

Bor Speed f.ryðfrítt 1 mm DIN338-HSCO

Vörunúmer: 0626 930 100

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Surface	Multiple refined
Length (l1)	34 mm
Angle of the tip	135 Degree
Diameter (Ø)	1 mm
Material to be processed	SteelCast ironStainless steelTitaniumAluminium
Suitable for machine type	DrillCordless screwdrivers
Service life (points system)	3 of 4 points
Quality	ZEBRA-Premium
Standard / drilling depth	DIN 338/5xD
Shank style	Cylindrical
Material sub-group	General structural steelsNon-alloyed tempering steelsNitriding steelsTool steelsHigh-speed steelsCast ironDuctile ironMalleable cast ironWhite cast ironStainless steels, sulphurated/austenitic/martensitic
Cutting material	HSCo
Self-centring	Yes
Suitable for drill (points system)	4 of 4 points
Suitable for cordless drills (points system)	4 of 4 points
Suitable for upright drilling machine (points system)	2 of 4 points
Drilling speed (point system)	4 of 4 points
Bore hole quality (point system) ( )	4 of 4 points
Versatility (points system)	4 of 4 points
Drilling behaviour (point system)	4 of 4 points
Chip flute length (l2)	12 mm
Suitable for tensile strength up to	1200 N/mm²
Material sub-group.	TitaniumSpring steelsMagnesium alloysCopper, low-alloyedBronze, short/long chippingBrass, short/long chippingPlastics, duroplastic/thermoplasticAlloyed tempering steelsTitanium alloysAluminium alloysAluminium
