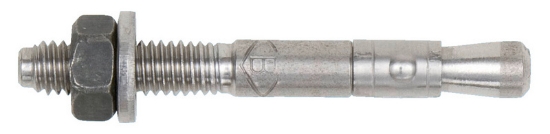

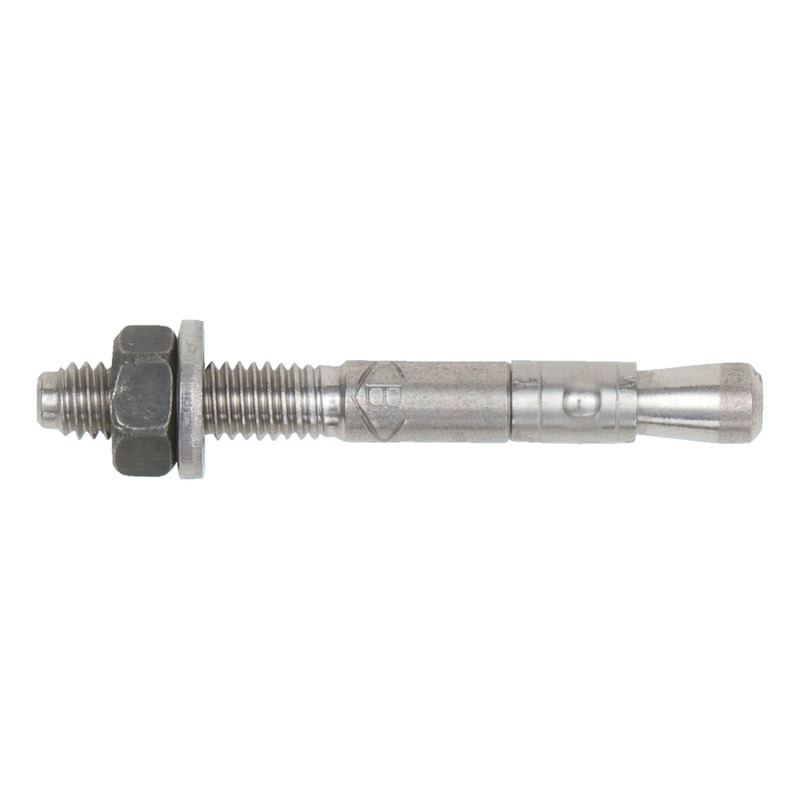

A4 Múrbolti M6 10/67mm

Vörunúmer: 0904 411 065

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Stainless steel A4
Width across flats	10 mm
Approval	ETA-02/0001ETA-06/0162
Anchor length (l)	67 mm
Nominal drill-bit diameter (d 0)	6 mm
Through-hole in the component to be connected (d f)	7 mm
Metric anchor diameter	M6
Attachment height (t fix)/effective anchoring depth (he ef)/drill hole depth (h 1)	10 / 40 / 55 mm
Attachment height (t fix 2)/effective anchoring depth (h ef 2)/drill hole depth (h 1, 2)	20 / 30 / 45 mm
