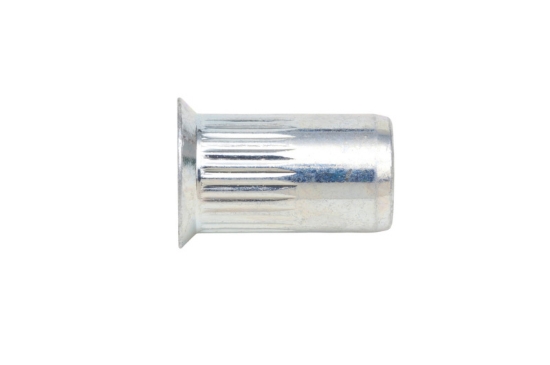

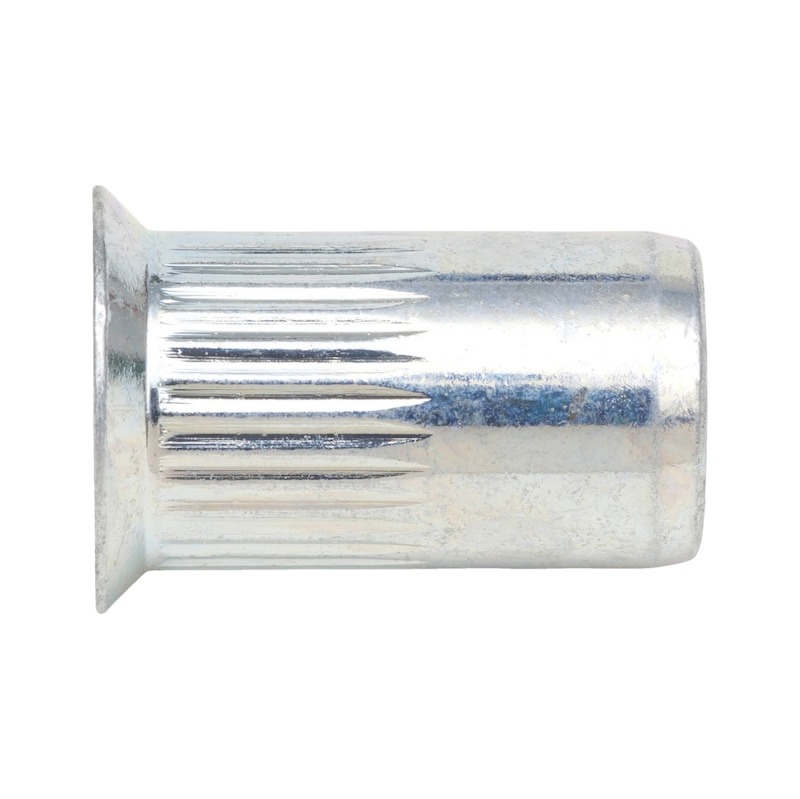

A2 Hnoðró undirsinkuð riffluð M10

Vörunúmer: 0942 100 010

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Stainless steel A2
Length (l1)	21 mm
Head height (k1)	1.8 mm
Thread type x nominal diameter (D)	M10
Outer diameter (d2)	12.9 mm
Drill hole diameter	13 mm
Shear-fracture load	8110 N
Tensile fracture load	34300 N
Head diameter (d1)	15.5 mm
Min./max. grip range (s1)	1,5-4,0 mm
Max. tightening torque	33 Nm
Shank detail	With knurled shank

Skrifaðu þína eigin umsögn

Titill umsagnar: *

Texti umsagnar: *

Einkunn:

Nafnið þitt *

Netfangið þitt *

Fyrirspurn *

Vinsælar vörur Skoða vörur

Tæknilegar upplýsingar

Material	Stainless steel A2
Length (l1)	21 mm
Head height (k1)	1.8 mm
Thread type x nominal diameter (D)	M10
Outer diameter (d2)	12.9 mm
Drill hole diameter	13 mm
Shear-fracture load	8110 N
Tensile fracture load	34300 N
Head diameter (d1)	15.5 mm
Min./max. grip range (s1)	1,5-4,0 mm
Max. tightening torque	33 Nm
Shank detail	With knurled shank
