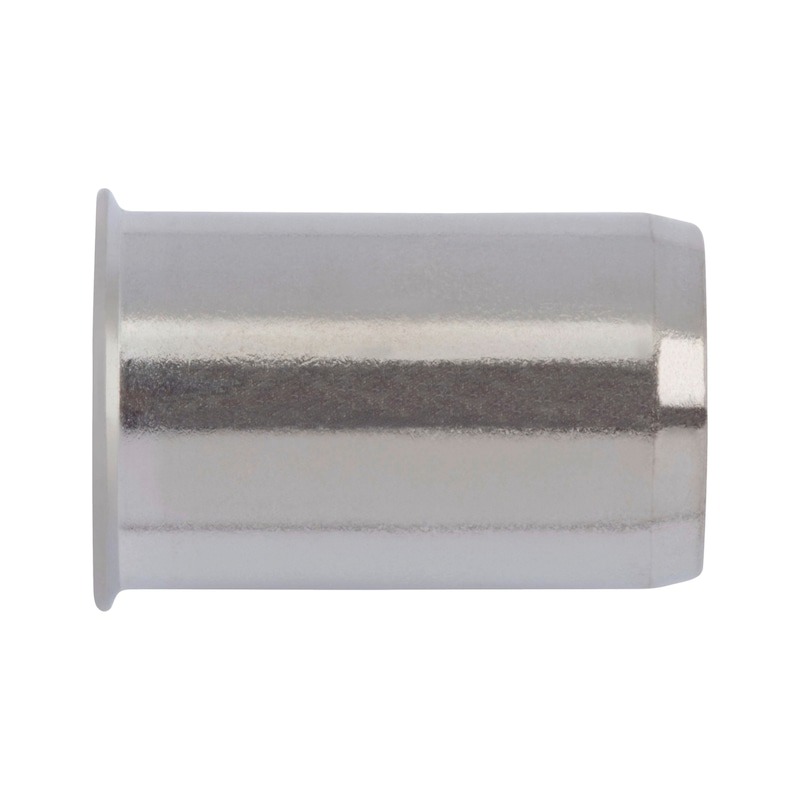

A2 Hnoðró undirsinkuð M5

intelisale.product.documents
Vörunúmer: 0942 15
×
products.pickngo
products.pickngo.modaltitle ×
sjá allar tegundir
Fljótleg afhending
Ókeypis sendingarkostnaður
Tæknilegar upplýsingar
Nafn á eigindi Eigindargildi
Material Stainless steel A2
Surface Bare
Length (l1) 11.5 mm
Head height (k1) 0.4 mm
Head type Countersunk head
Thread type x nominal diameter (D) M5
Version With small countersunk head
Outer diameter (d2) 6.95 mm
Drill hole diameter 7 mm
Shear-fracture load 3900 N
Tensile fracture load 11000 N
Head diameter (d1) 8 mm
Min./max. grip range (s1) 0,25-3,00 mm
Max. tightening torque 5 Nm
