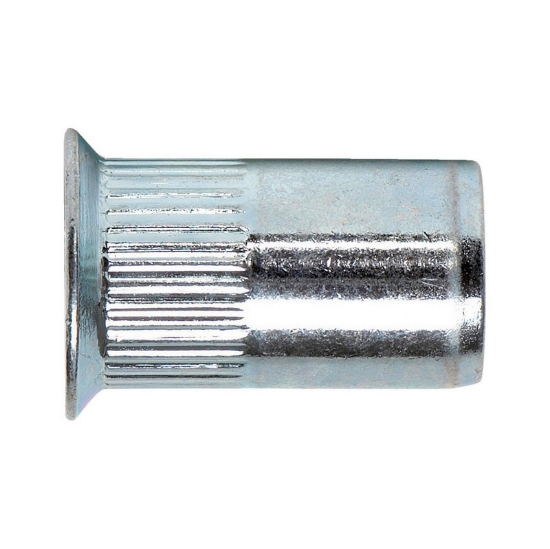

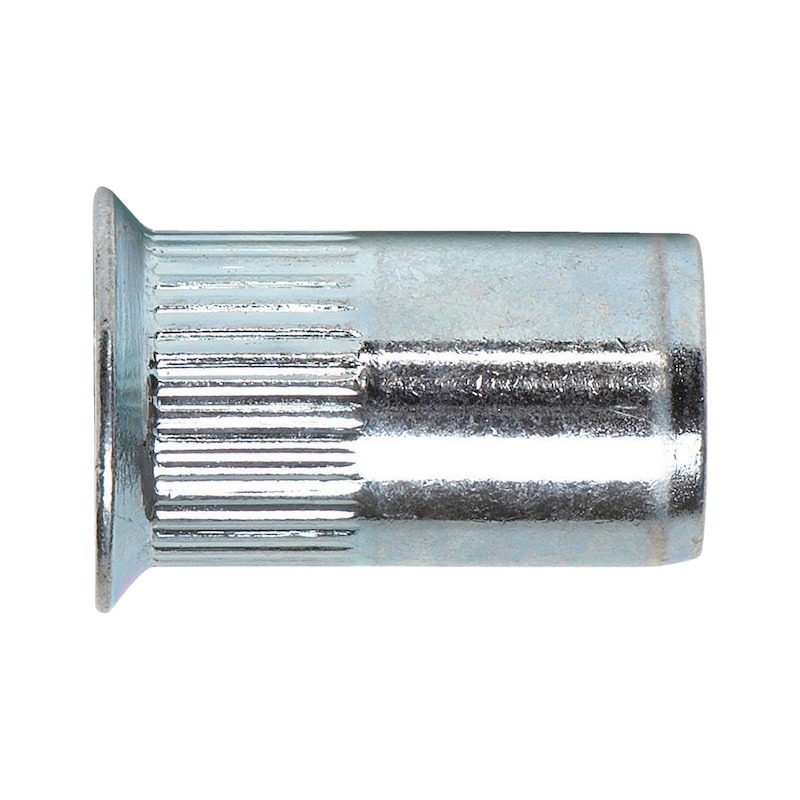

Ál hnoðró undirsink M6 9x19mm

Vörunúmer: 0948 420 6

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Aluminium
Surface	Plain
RoHS-compliant	Yes
Thread type x nominal diameter (D)	M6
Length (l1)	18 mm
Head diameter (d1)	11.5 mm
Outer diameter (d2)	8.9 mm
Head height (k1)	1.5 mm
Min./max. grip range (s1)	4.0-6.5 mm
Tensile fracture load	9300 N
Shear-fracture load	2280 N
Max. tightening torque	11.3 Nm
Drill hole diameter	9 mm
Shank detail	With knurled shank
Head type	Countersunk head
