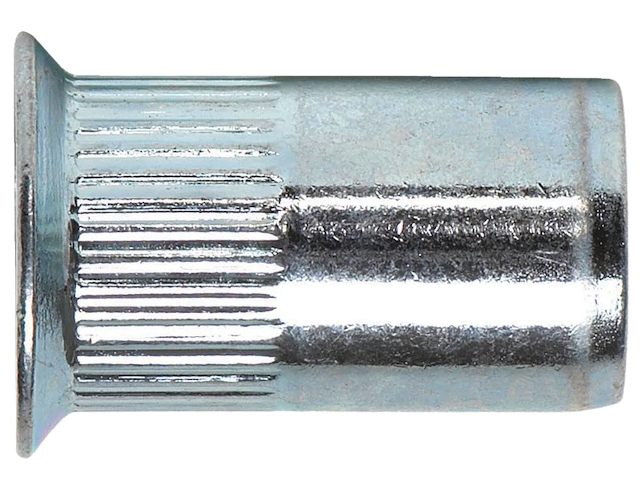

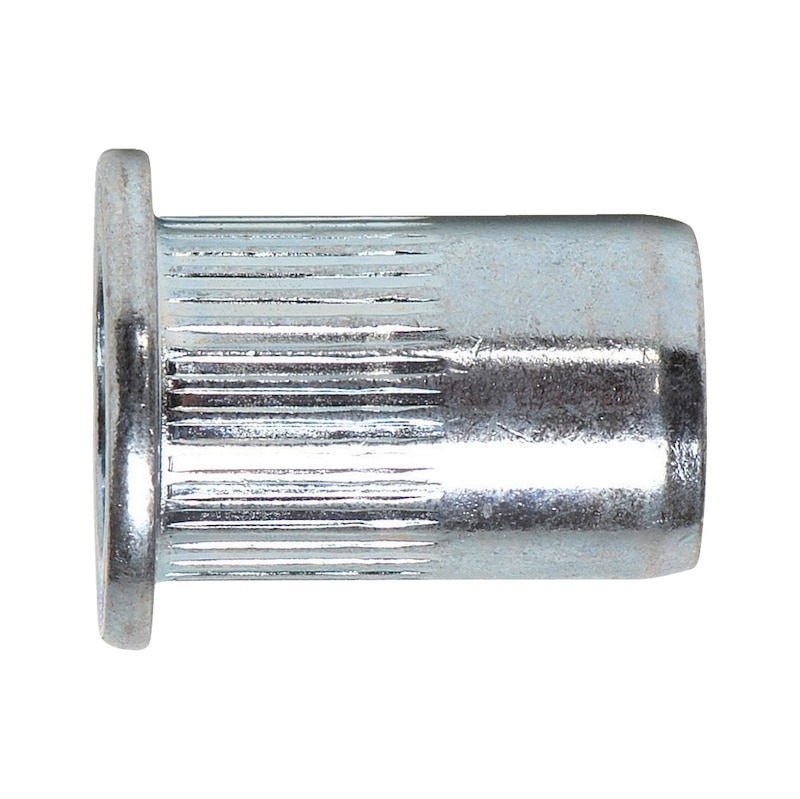

Ál hnoðró m.fláns M10 11,9x24,0mm

Vörunúmer: 0948 220 10

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Aluminium
Surface	Plain
RoHS-compliant	Yes
Thread type x nominal diameter (D)	M10
Length (l1)	24 mm
Head diameter (d1)	16 mm
Outer diameter (d2)	11.9 mm
Head height (k1)	2.1 mm
Min./max. grip range (s1)	3.0-6.0 mm
Tensile fracture load	21500 N
Shear-fracture load	3820 N
Max. tightening torque	20 Nm
Drill hole diameter	12 mm
Shank detail	With knurled shank
Head type	Dome head
